Your freezer light is on, the fan might even be humming, but your ice cream is turning into a slushy mess. It’s a frustrating scenario that happens more often than you’d think, especially in a climate like Wellington’s where humidity can play tricks on household appliances. When a freezer is a refrigerated storage compartment designed to keep food at or below -18°C for long-term preservation stops doing its primary job, it’s usually down to one of five specific mechanical failures. You don’t always need a full replacement; often, a targeted fix restores performance within hours.
The Defrost System: The Silent Killer
If you open the freezer and see a thick layer of ice on the back wall or around the evaporator coils, your problem is likely the defrost system is a mechanism that periodically melts frost buildup on evaporator coils to maintain airflow and efficiency. Modern freezers use an automatic defrost cycle triggered by a timer or sensor. When this fails, frost accumulates until it blocks airflow completely. The result? Warm air gets trapped, and the temperature rises despite the compressor running hard.
This is the most common reason for partial freezing failures. The defrost heater, which sits near the evaporator, burns out over time due to thermal stress. Alternatively, the defrost thermostat, which regulates when the heater activates, may fail in the closed position, preventing heat from ever reaching the coils. If you hear a gurgling sound followed by silence, check if water is draining properly. A blocked defrost drain pan can cause ice dams that seal off the cooling path.
Airflow Blockages and Fan Failures

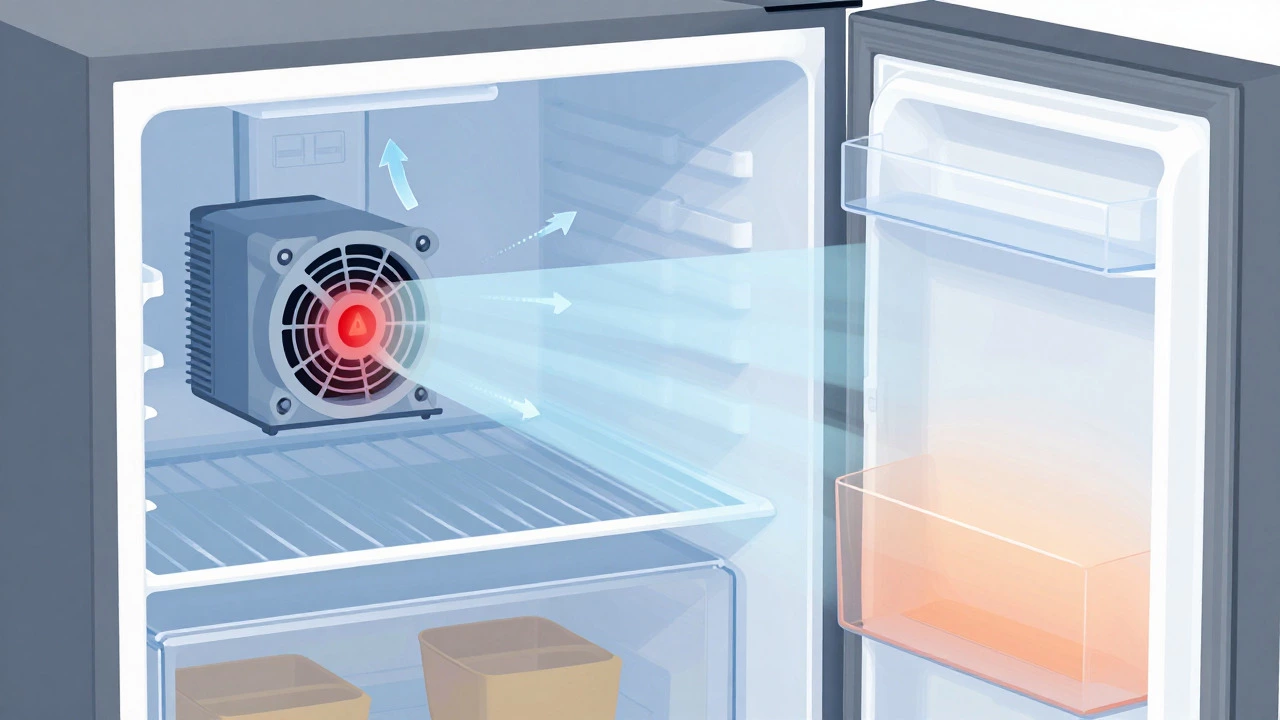

Cold air doesn’t move itself. It relies on a small fan, usually located behind the rear panel or inside the fresh food section, to circulate chilled air from the evaporator into the freezer cavity. If this evaporator fan is a motorized component that blows cold air from the evaporator coils into the freezer compartment fails, the front of the freezer stays warm while the back remains cold. You might notice that items placed near the back are frozen solid, but those in the door bins are thawing.
Obstructions are just as deadly as broken fans. Overstuffed freezers block the air vents, creating dead zones where cold air can’t reach. Try removing 30% of your contents and see if the temperature drops. If the fan isn’t spinning, listen closely. A clicking noise indicates a seized motor bearing, while complete silence suggests a power issue or a tripped overload protector. In multi-zone fridges, a stuck damper door between the fridge and freezer sections can also prevent cold air from entering the freezer compartment entirely.
Compressor and Refrigerant Issues
If the freezer is warm everywhere and the compressor isn’t running, you’re dealing with a heavier issue. The compressor is the pump that circulates refrigerant through the system, compressing it to release heat outside the unit is the heart of the cooling system. When it dies, nothing cools. However, before assuming total failure, check the start relay. This small component attached to the side of the compressor helps kick-start the motor. If it clicks but the compressor doesn’t hum, the relay is likely burnt out-a cheap part that DIYers can replace in minutes.
If the compressor runs constantly but the freezer stays warm, you might have a refrigerant leak. Low refrigerant levels mean the system can’t absorb enough heat to drop the temperature. This often presents as a hissing sound or oily residue around pipe joints. Unlike the defrost issues, this requires professional evacuation and recharging, as improper handling can damage the compressor further. Note that modern systems use R600a (isobutane), a flammable gas, so caution is essential during any inspection.
Condenser Coils and Electrical Faults
Often overlooked, the condenser coils located at the bottom rear or beneath the unit trap dust, pet hair, and kitchen debris. When these condenser coils are heat exchangers that dissipate heat absorbed from the freezer interior to the surrounding room get clogged, the compressor has to work harder to reject heat. Eventually, it overheats and shuts off via the high-pressure switch. Cleaning these coils every six months with a vacuum brush can extend the life of your appliance significantly. In humid environments like coastal New Zealand homes, salt air can accelerate corrosion on these coils, making regular maintenance even more critical.
Electrical faults also play a role. A faulty main control board can send incorrect signals to the compressor or fans. If the display shows error codes, consult your manual first. For example, an "E4" code on many Samsung models indicates a temperature sensor failure. Replacing a $20 sensor is far cheaper than a new control board. Always ensure the voltage supply is stable; brownouts can damage sensitive electronics in modern smart freezers.
Diagnostic Comparison Table
| Symptom | Likely Cause | Difficulty Level | Estimated Cost (NZD) |
|---|---|---|---|
| Frost buildup on back wall | Defrost heater or thermostat failure | Medium | $150 - $300 |
| Warm front, cold back | Evaporator fan failure or blockage | Low | $100 - $250 |
| No cold air anywhere | Compressor or start relay failure | High | $400 - $800 |
| Constant compressor run | Refrigerant leak or dirty condenser | High | $300 - $600 |
| Error code on display | Temperature sensor or control board | Medium | $200 - $450 |
When to Call a Professional
You should call a technician if the compressor makes a loud grinding noise, if there’s visible oil leakage, or if you’re uncomfortable working with electrical components. Also, if your unit is older than 10 years, weigh the repair cost against buying new. A compressor replacement on an old model rarely makes financial sense. In Wellington, where energy prices fluctuate, ensuring your freezer operates at peak efficiency saves money monthly. A well-maintained unit uses about 15-20% less energy than a neglected one, translating to tangible savings on your electricity bill.
Preventive Maintenance Tips
- Clean condenser coils: Vacuum the coils under the unit every 6 months. Use a coil brush to remove deep-set dust.
- Check door seals: Run a dollar bill test. If it pulls out easily, the gasket needs cleaning or replacement to prevent warm air ingress.
- Monitor temperature: Keep a digital thermometer in the freezer. It should stay between -18°C and -20°C. Fluctuations indicate early warning signs.
- Unplug for deep clean: Every year, defrost completely and clean the interior with baking soda solution to neutralize odors and prevent mold growth.
Frequently Asked Questions
Why does my freezer make a clicking sound but not cool?
This is typically a failing start relay. The relay tries to engage the compressor, fails, and trips the overload protector, causing the click. Replacing the relay is a quick fix that often resolves the issue immediately.
How long can I leave food in a non-freezing freezer?
If the door stays closed, food remains safe for up to 24 hours. After that, bacterial growth accelerates. Check internal temperatures; if above -15°C for more than a few hours, inspect meat and dairy carefully before consuming.
Is it worth repairing a 15-year-old freezer?
Generally, no. If the repair cost exceeds 50% of the price of a new energy-efficient model, replacement is smarter. Older units consume more electricity and lack modern insulation, leading to higher long-term costs.
What causes frost buildup in a frost-free freezer?
Frost in a 'frost-free' model indicates a failed defrost cycle. The heater isn't melting the ice, so it accumulates. Check the defrost timer, heater element, and thermostat. These parts wear out after 7-10 years of continuous use.
Can I use a hairdryer to remove ice quickly?
Yes, but use low heat and keep it moving. Avoid direct contact with plastic panels to prevent warping. Place towels underneath to catch meltwater. Once dry, run the unit empty for a few hours to ensure all moisture evaporates before restocking.
